Key Specifications

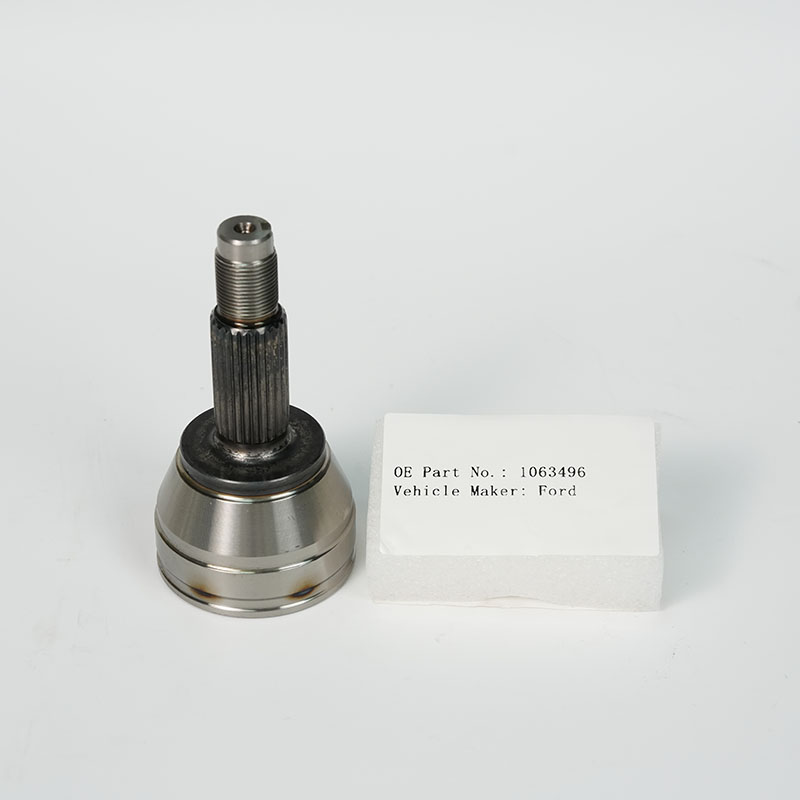

· Fitting location: Front Outer (wheel side)

· Kit contents: Outer CV joint, TPEE CV boot, hose clamps, axle nut, special high-temperature CV joint grease

· Material: CV joint body – chromium-molybdenum steel with medium-frequency quenching; CV boot – TPEE thermoplastic polyester elastomer

Application & Installation Instructions

1. Function: Connects drive shaft and wheel hub, transmits constant torque during steering and suspension travel. Some versions are equipped with integrated ABS tone ring to supply wheel speed signal for ABS sensor.

2. Failure symptoms for replacement

· Clicking noise from chassis while turning

· Torn CV boot, grease leakage, sand/mud ingress leading to accelerated joint wear

· ABS warning light illuminated due to rusted or damaged ABS tone ring

3. Installation Guidelines

· Always install brand-new TPEE boot and fresh dedicated CV grease. Old grease cannot be reused.

· Tighten axle nut to OEM torque value. Check CV boot for twisting or squeezing after assembly.

· Verify spline count and ABS ring tooth count against original part before fitting. Mismatched teeth will trigger ABS fault.

4. Notes

· Only for FWD vehicles, NOT suitable for RWD vehicles.

· This is outer CV joint (wheel side), NOT inner gearbox-side joint. Do not interchange.

· Storage: Keep dry, away from direct sunlight, avoid squeezing the CV boot. Pre-filled with CV grease before shipment
