Key Specifications

· Location: Front Outer (wheel side)

· Design: Integrated ABS tone ring

· Inner splines: 25 splines

· Outer thread: M24 (axle nut)

· Kit contents: Outer CV joint, TPEE CV boot, hose clamps, axle nut, special CV joint grease

· Material: CV joint body – chromium-molybdenum steel with medium-frequency quenching; CV boot – TPEE thermoplastic polyester elastomer

? Application & Installation Instructions

1. Function: Connects drive shaft and wheel hub, transmits torque at constant velocity during steering and suspension travel; the ABS ring supplies wheel speed signal for ABS sensor.

2. Failure Symptoms for Replacement

· Typical clicking noise from chassis when turning

· Torn CV boot, thrown-out lubricant, ingress of sand/mud accelerating joint wear

· ABS warning light triggered (rusted or damaged tone ring)

3. Installation Guidelines

· Always fit brand-new TPEE boot and fresh dedicated CV grease; old grease cannot be reused

· Tighten axle nut to Toyota OEM torque value; inspect CV boot for twisting or squeezing after assembly

· Verify spline count and ABS ring tooth count against original axle before fitting; mismatched parts will trigger ABS faults

4. Notes

· Fits FWD Corolla E11 only, NOT for RWD vehicles

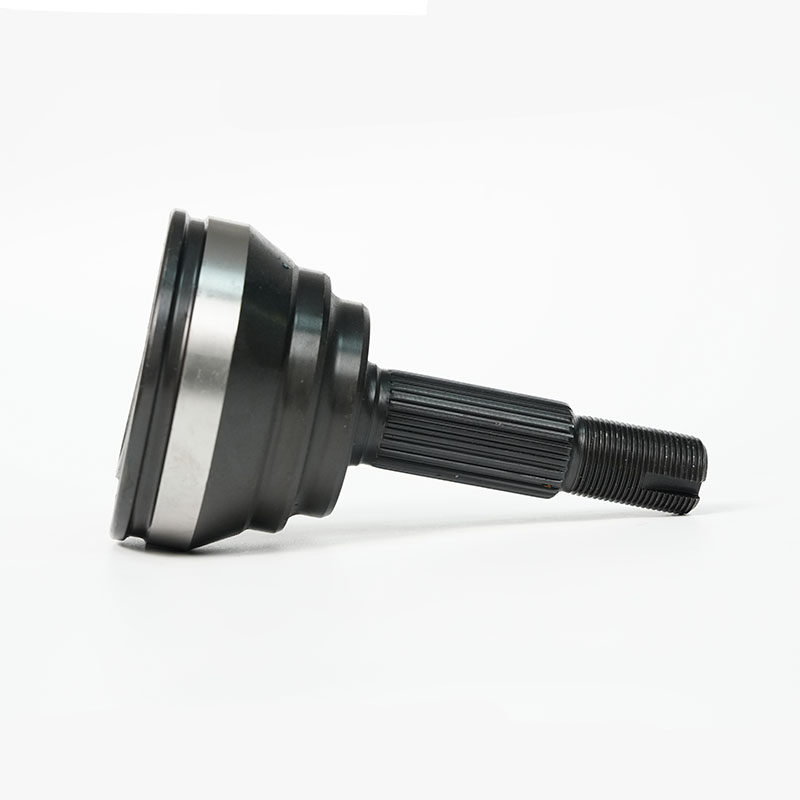

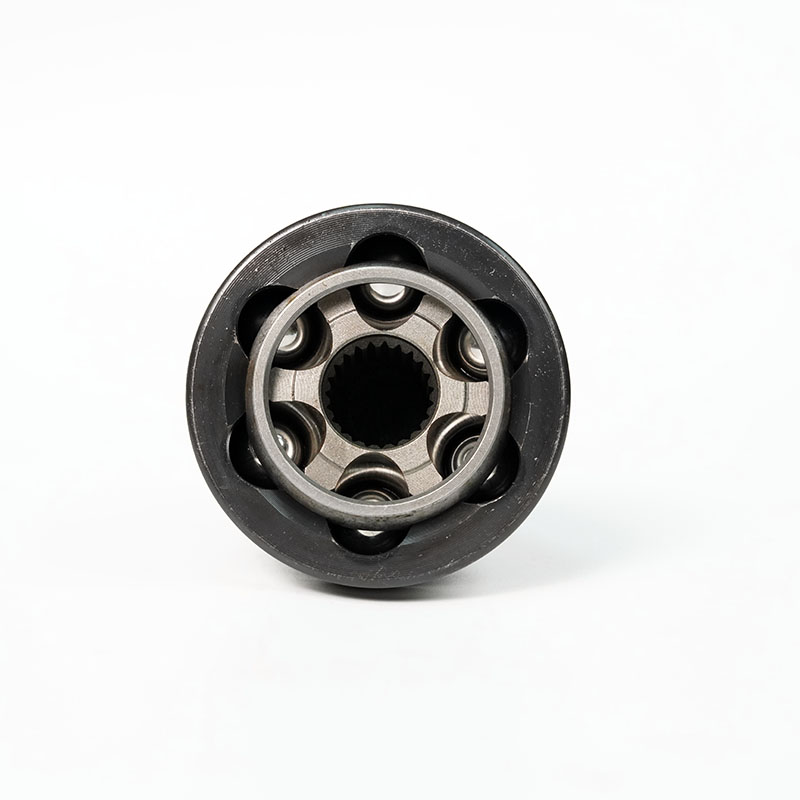

· This 4341012490 is outer CV joint, not inner joint; do not mix up with versions without ABS tone ring

· Storage: Keep dry, away from sunlight; avoid squeezing the CV boot. Pre-filled with high-temperature CV grease before
